Designed to inspire confidence in every restoration, the D52 combines rock-solid stability, pinpoint precision, and lasting durability. From start to finish, it delivers smooth, reliable performance — milling made effortless.
5 Axis
7 Tools
90° Milling
60000 RPM
10µm Accuracy

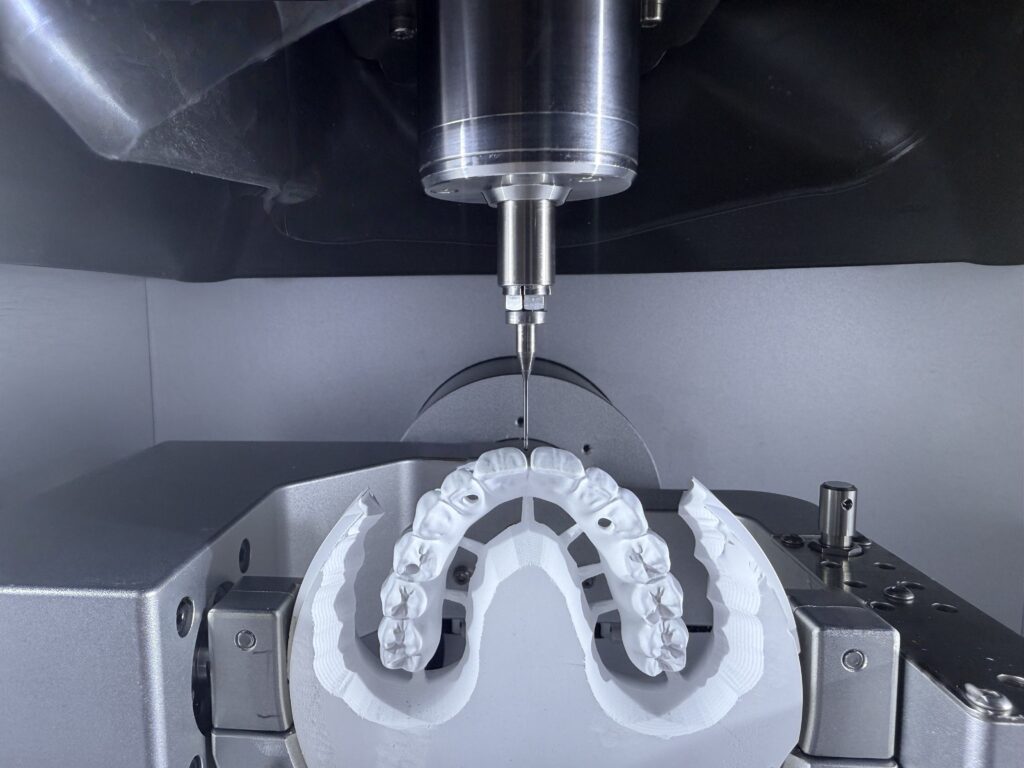

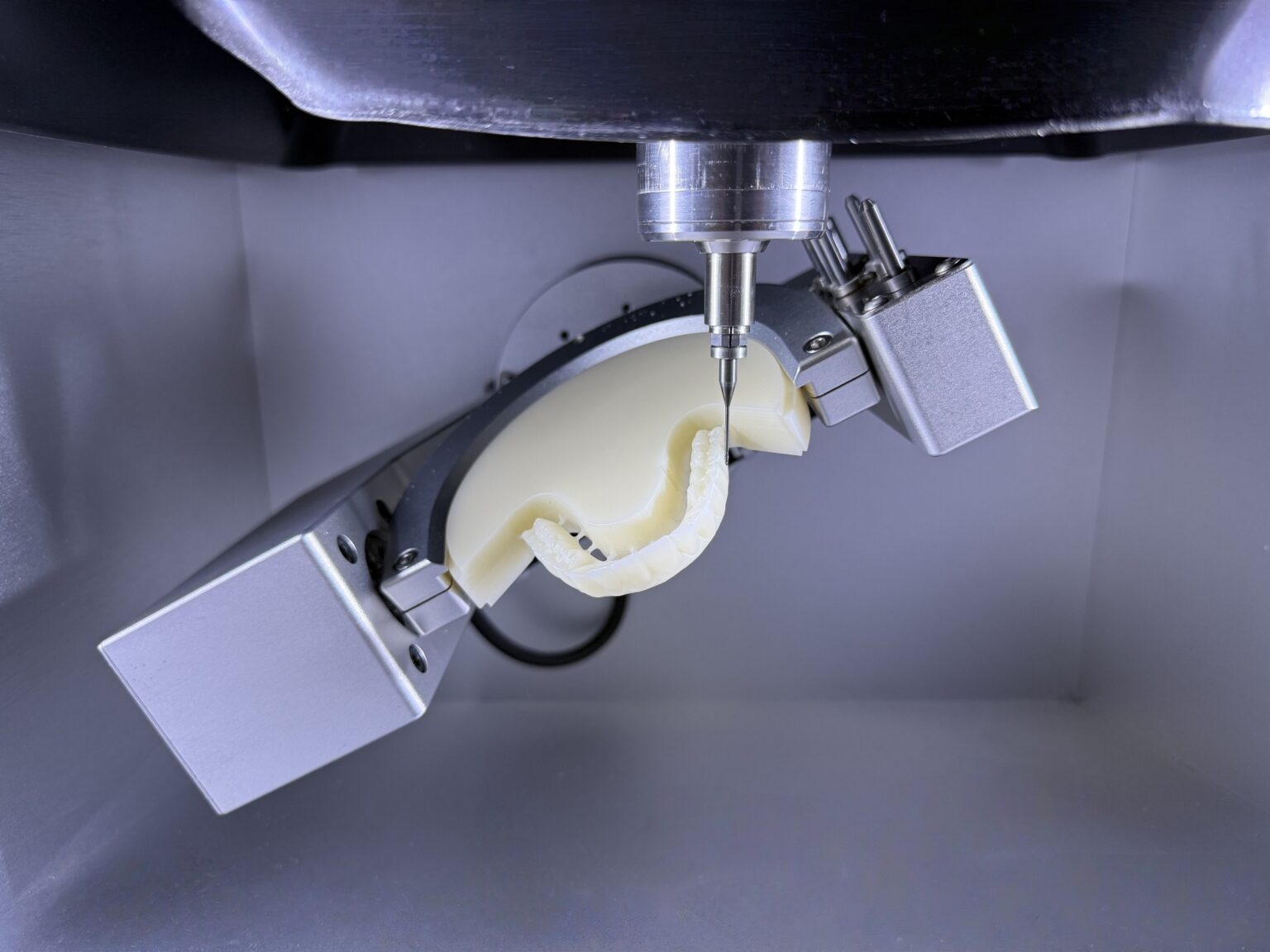

Featuring a unique semi-circular open clamp design, the D52 enables genuine 90-degree vertical milling, effortlessly tackling complex undercuts and large-span restorations with exceptional surface smoothness and precision.

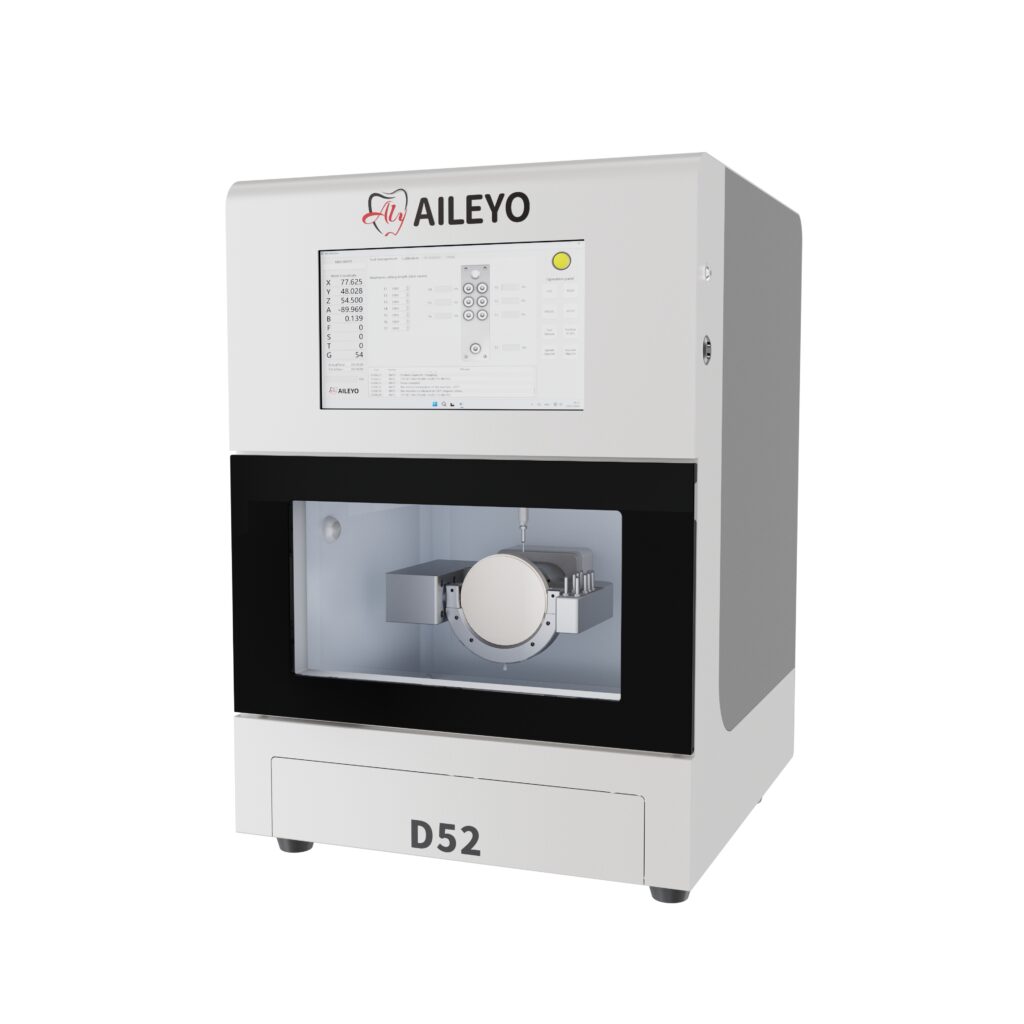

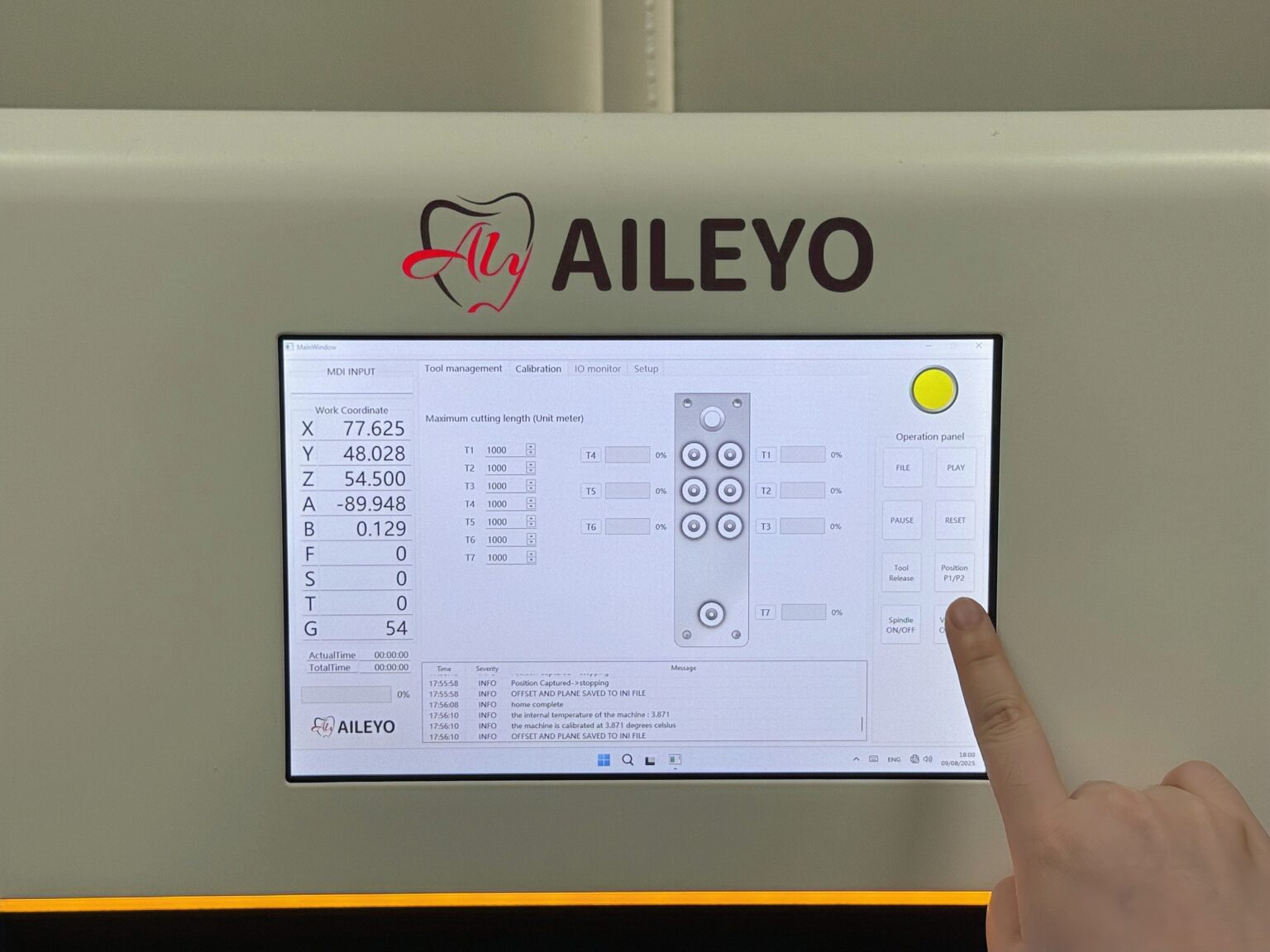

Equipped with a crisp touchscreen and powerful onboard computer, the D52 operates independently without the need for an external PC. Its built-in remote control software enables instant one-click connection to factory experts, ensuring fast, hassle-free technical support whenever you need it.

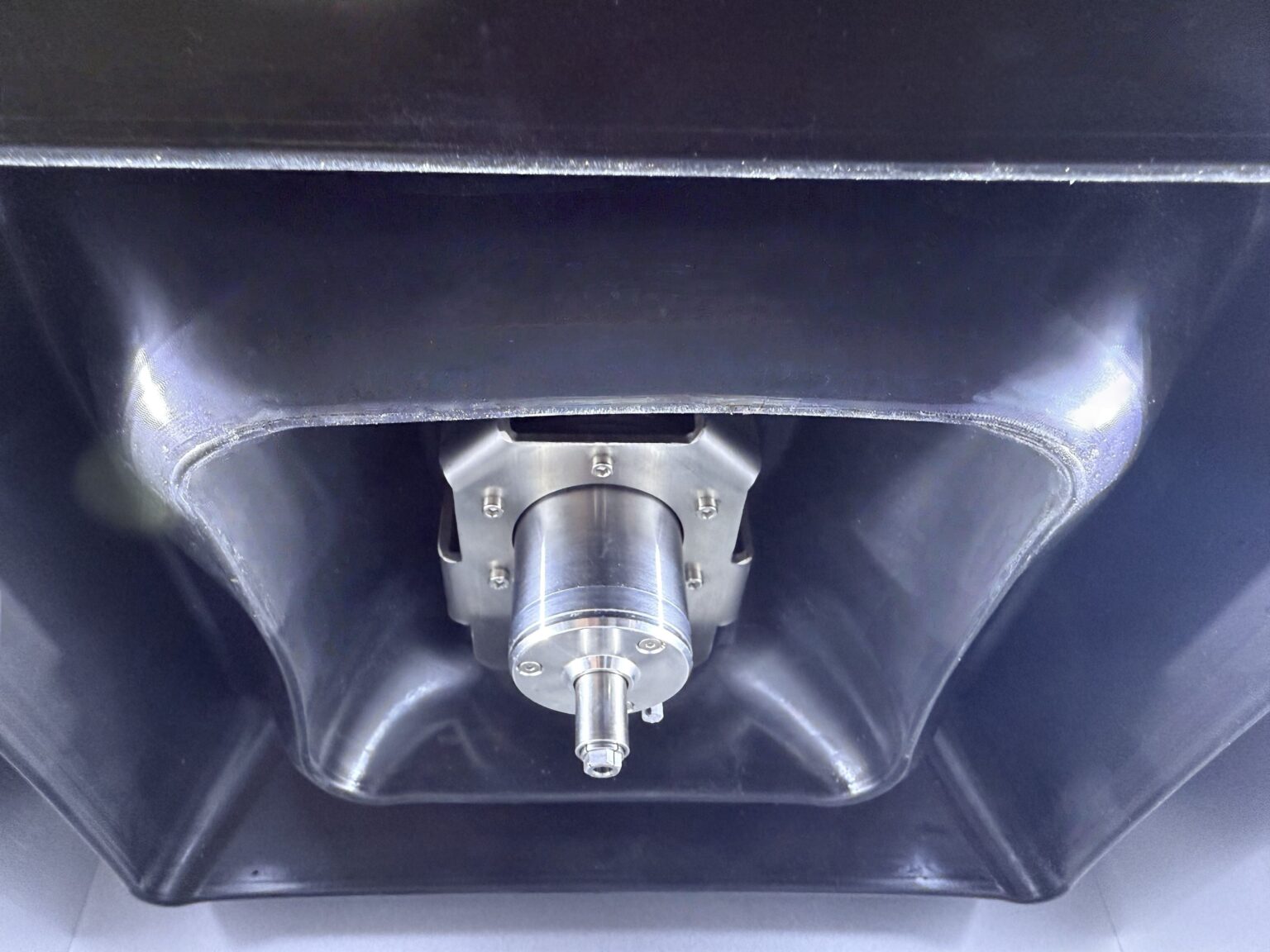

Ultimate Protection — Fully Enclosed, Zero-Gap Dust Shield
Breaking free from outdated accordion covers, our revolutionary fully sealed silicone dust membrane creates an impenetrable barrier that keeps critical components like guide rails and ball screws completely isolated from milling debris.

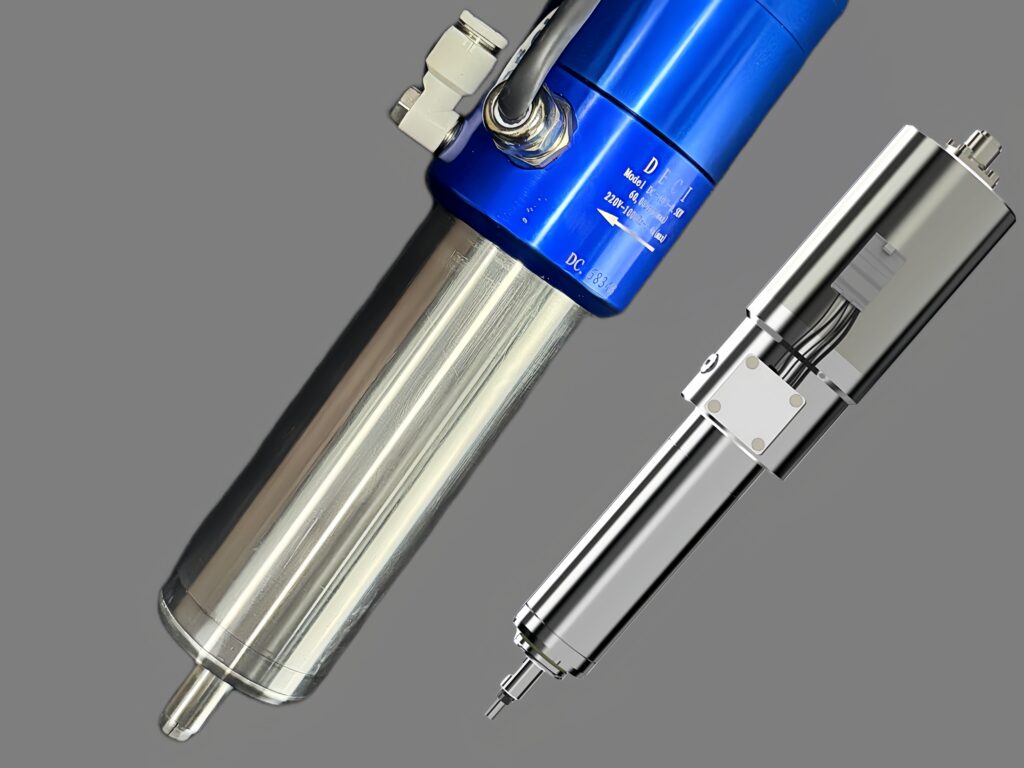

Features an optional, top-tier German electric spindle, completely eliminating the need for an external air compressor. Experience silent, maintenance-free operation with no complex air-line setup.
Features an optional, top-tier German electric spindle, completely eliminating the need for an external air compressor. Experience silent, maintenance-free operation with no complex air-line setup.
|
Processing mode |
Dry |
|
Millable material |
Zirconia,wax,PMMA,PEEK,composite resin,soft milling CoCr sintering metal |
|
Applications |
Crowns, anatomical crowns, screw-retained crowns, inlays, onlays, veneers,telescopic crowns, abutments, bite splints, full dentures etc |
|
Power |
100 ~ 240V AC 50/60Hz |
|

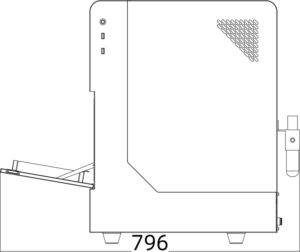

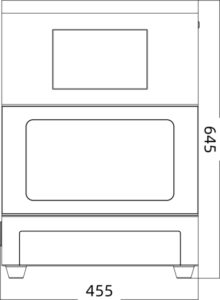

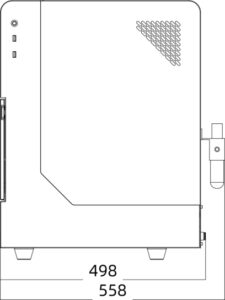

Dimension |
498×455×645mm |
|
Weight |
80kg |
|
Air supply pressure |
0.6 MPa |
|
Basic construction |
Aluminium |
|
Rotary axis A-axis |
±360° |
|
Rotary axis B-axis |
±30° |
|
Tool |
7 |
|
Speed |
60,000rpm |
|
Positioning/Repositioning accuracy |
0.01/ 0.005 mm |
